Product
Description:
We

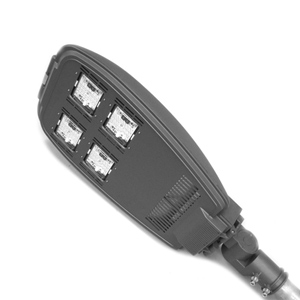

have honor introducing the PM-P25BSTL-100W LED Street Lamp. Utilizing LED
components from Philips-Lumileds Rebel, the total flux reached 6000 lumen with
power consumption of only 100 Watt, sufficient to replace traditional HID or HPS
lamps of 200 Watt. Benefitted from advanced optics technology, its projection is
precision controlled within a defined square plot with exceptional homogeneity.
Crossing over the technology and tradition ends, while its performance parts
changed to LED technology, its outside retains the elegant curve and shape of
traditional street lamps. The Lamp is also ideal to be powered by PV (solar
power) on wind turbine, in either a grid-combined on stand-alone design.
Product Application:
| 1. Optimal Pole Height |
5 – 8 Meters |
|
2. Road Width |
5 – 8 Meters |
|
3. Road Types |
Suburban Roads, Secondary Roads |
Main Features:
1.
Adopting the revolutionary
Power Master LED modules, which integrates LED emitters, optics and lens, and
heat dissipation, all into a compact IP 65 Al-Gard platform.
2.
LED components by Philips
Lumileds Rebel.
3.
No concerns of patent or IP
infringement.
4.
Unique square radiation
pattern from the technology, no more bright-and dark “zebra stripe” problems.
5.

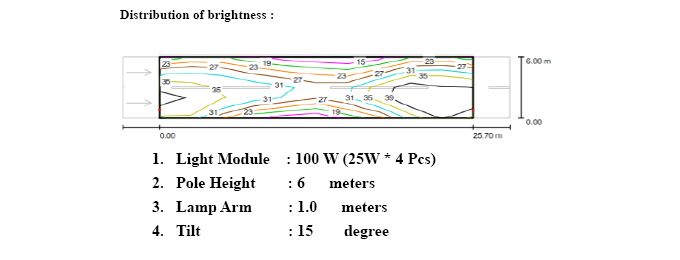

Exceptional Brightness
Homogeneity, over 0.55 Min. / Ave. within the projection area.
6.
Significant energy saving
over traditional technology, over 60% *Note 1.
7.
LED Operating Life: Over
50,000 hours *Note 2.
8.
Weather ability: IP
65
9. Heat Dissipation :
SFCT
Note 1 : Condition of : Pole height at 5
meters, average effective surface bright at over 75 Lux, the comparison of power
consumption by 75 Watt LED street lamp set using Power Master, and 150 Watt
street lamp set using tradition HIP/ HPS technology.
Note 2 : Lumen maintenance of LED
components at over 70%. |
